Rubber Terracotta Vacuum Extruded Plastic Parts Germany Brick Making Machine Manual Brick Making Machine in Kenya

• Overview
• PRODUCT OVERVIEW
• FEATURE AT A GLANCE
• PRODUCT SPEFICITIONS
• ABOUT US
• Certifications
• CUSTOMER VISIT
• EXHIBITION

Overview

Basic Info.

Model NO.	KLJ56/50-s
Certification	CE
Customized	Customized
Automatic Grade	Automatic
Type	Vacuum Clay Extruder
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Auger Wear Material	Cr. Alloy
Auger ( Diameter)	560/500 mm
Degree of Vacuum	92%
Extrusion Pressure	3.5 MPa
Total Weight	20000 Kg
Dimensions	7000*5500*2600 mm
Power (Upper Stage-Mixing)	90 Kw
Power (Bottom Stage-Extrusion)	160 Kw
Bottom Extrusion Screw Rotate Speed	20 Rpm
Specification	7000*5500*2600mm
Trademark	BRICKMAC
Origin	Jiangsu China
Production Capacity	35-50 Ton/Hour

Product Description

Machine includes:

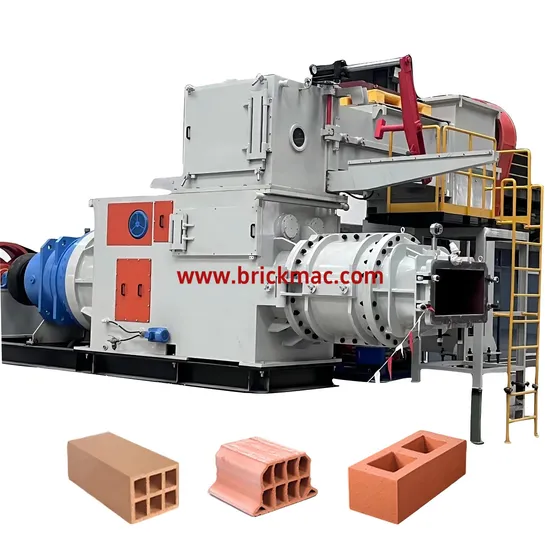

PRODUCT OVERVIEW Screw of DOUBLE STAGE VACUUM CLAY BRICK EXTRUDER

This serious of machines adopt the latest manufacturing technology from Europe, its specialized for extruding high-end ceramic materials, cement products, and other types of semi-hard materials. The equipment's material, technical structure, electrical system as well as operating system are manufactured in accordance with European standards, which have features of high degree of automation, easy operation, long life and saving maintenance costs. Scope of application: High-performance vacuum extruder is widely used in building materials manufacturing industries of all types of high-end ceramics, clay tiles and hollow blocks, cement and other building materials extrusion, the equipment has advanced European-level technology, stable performance and high efficiency.

- motor, pulley, belt, safety cover (standard) - planet reducer (standard) - Cr. Alloy screw (standard) - automatic electric control cabinet(optional) - extrusion die (standard) - installation drawing and foundation drawing(standard)- operating and maintenance manual(standard)

FEATURE AT A GLANCE

Planet reducer This serious of extruder adopts the European-level planet reducer to make sure stable and longer work performance.

Custom design This serious of extruder screw is custom designed according to client's real production condition, so the production performance and easy maintenance is guaranteed.

Perfect performance and longer duration With latest material treatment technology, main screw and die are able to work over 10,000,000 ~ 20,000,000 bricks(China standard brick) and no additional maintenance is needed.

PRODUCT SPEFICITIONS

Description		Remark
Model No.	KLJ56/50-S
Output	50-60 ton/h
Voltage	380 v
Frenquency	50 hz
Vacuum degree	92%
Extrusion pressure	3.0 mpa
Bottom screw dismeter	560/500 mm
Main bearing brand	NSK
Total power	160+90+11 kw
Total weight	20,000 kg	with motor and reducer
Dimensions	7000*5500*2600 mm	installation
